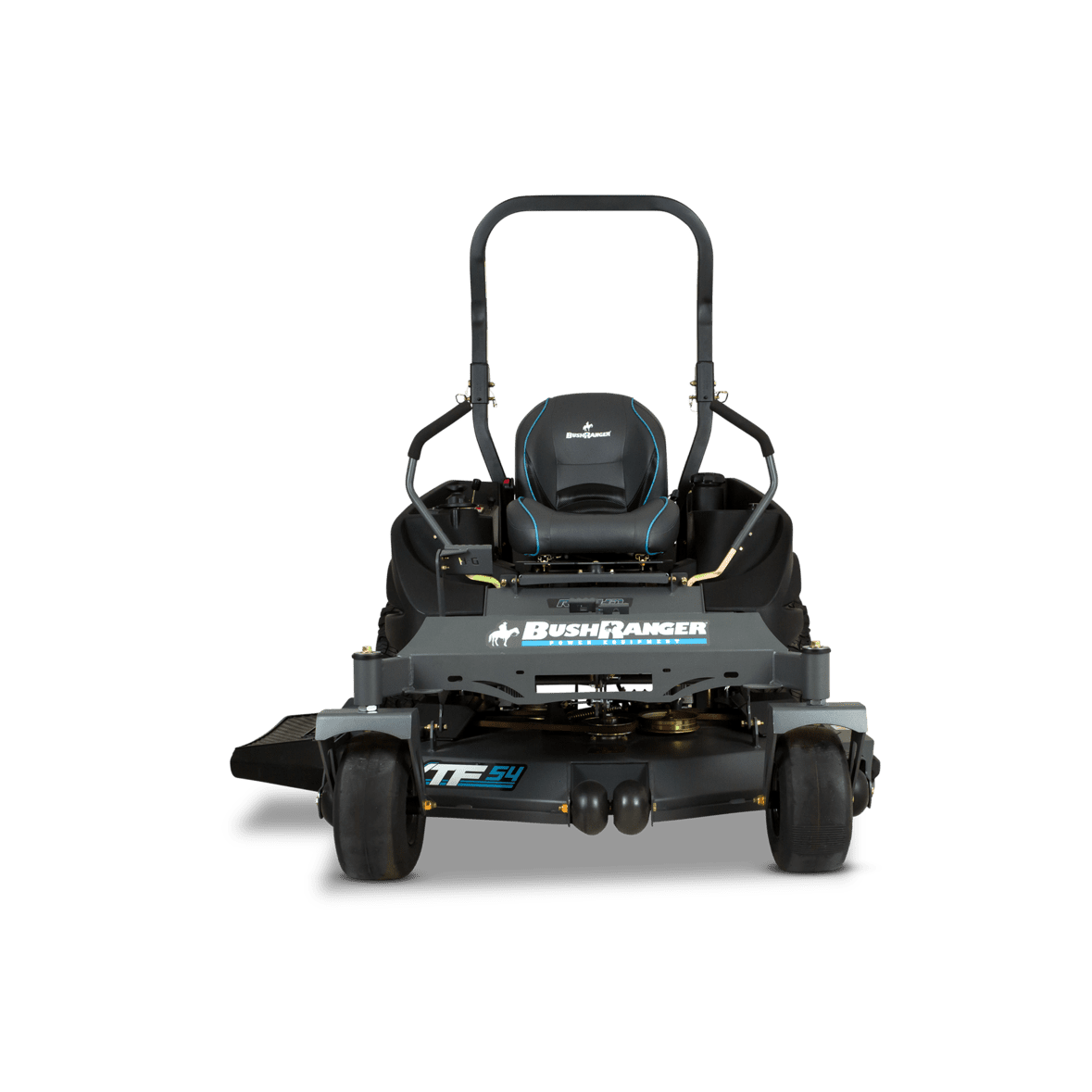

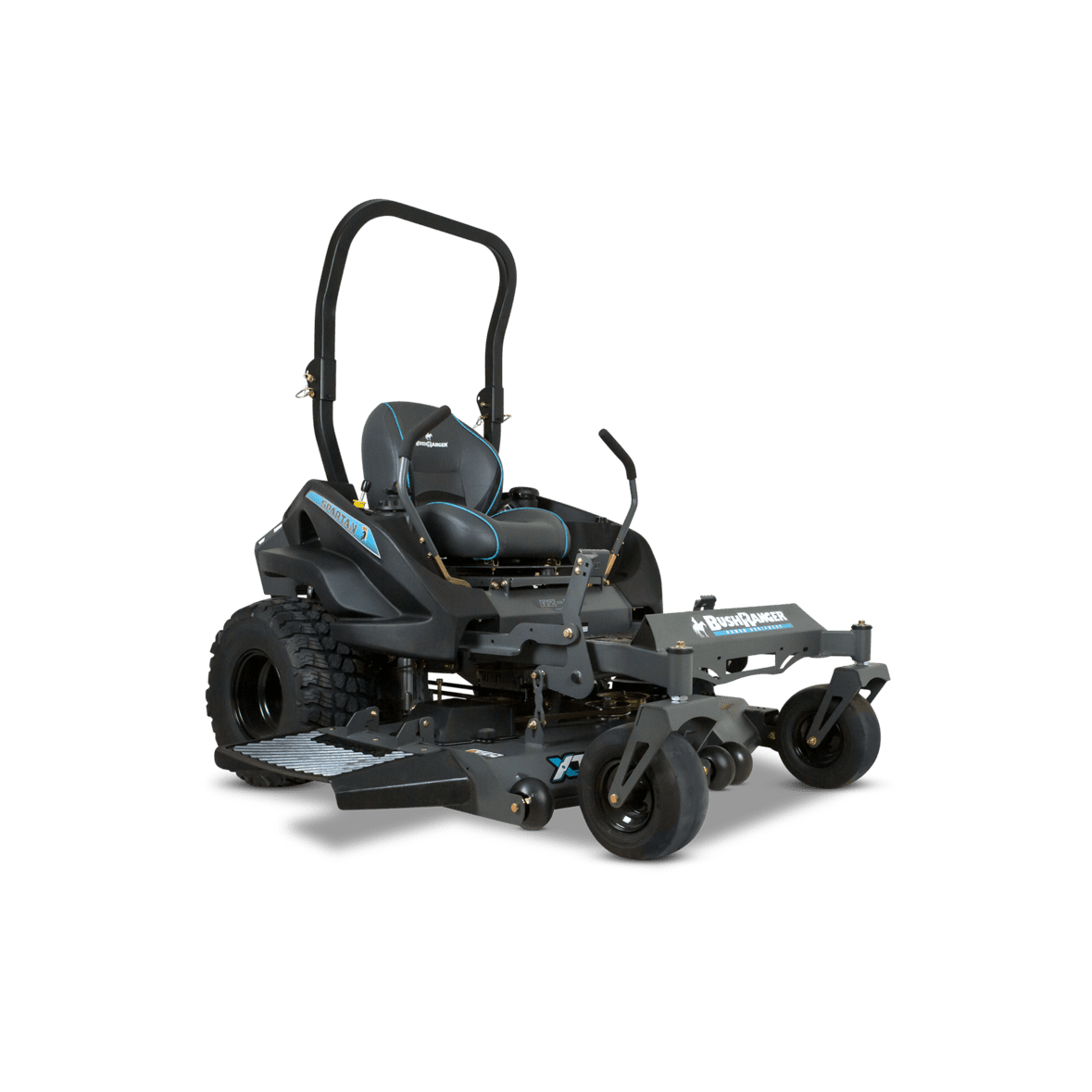

Key Features
- Kawasaki FR651V premium and commercial grade V-Twin engine.
- Engine Guard.
- Up to 14.48 kph top speed.
- 9 litres fuel capacity.
- Heavy-duty fabricated steel, 5” deep, full floating deck.
- Change on the go deck height dial with shock-assisted deck foot lift.
- Cast aluminium spindles with sealed double bearings.
- Long lasting deck belts are designed with large idler pulleys to minimize wear.
- Vibration control deck system.
- Fabricated heavy-duty steel frame.
- ZTR is perfectly balanced with low centre of gravity.
- GT-Trac for precision traction, balance and control on inclines.
- Parker HTE 10cc wheel motors.
- Foot-operated parking brake.
- Control panel with LCD display, an engine hour meter, mower deck hour meter and tachometer.
- Push-start keypad.
- 12v Outlet.
- Seat: RZ HD seat.
- 22″ drive tyres – turf radial
- 13″ front caster tyres – smooth tread
Specifications
Warranty Information
Domestic Warranty: 3 Years or 400 Hours Domestic Warranty (whichever comes first)
Commercial Warranty: 3 Years or 400 Hours Commercial Warranty (whichever comes first)
Dimension Specs
Dry Weight: 427.2 kg (941.8 lbs)
Height: 75” (1905 mm) with ROPS up, 54” (1372 mm) folding ROPS down
Width: 55.5” (1409.7 mm) w/discharge chute up
Length: 84” (2133.6 mm)
Zero Turn Mower Specs
Ground Speed – Forward: Infinitely variable up to 0-14.48 kph
Brakes: Foot-operated parking brake
Caster Tyres: 13” smooth tread
Tyres – Drive: 22” Turf radials
Seat: RZ HD seat
Construction: Heavy-duty fabricated steel, 5” deep, full floating deck
Hour Meter: Standard
Controls: Hand-operated choke, throttle, push button key, electric mower clutch, foot pedal
parking brake
Deck System: Side-Discharge: 54” (1372 mm) cut. (3) Blades, deck is suspended at two points
at the rear and two in front. Includes deck-mounted anti-scalp wheel(s) to
improve flotation in rolling and uneven terrain
Deck Lift: Foot operated with shock assist
Deck Construction: Heavy-duty fabricated steel, 5” deep, full floating deck
Blade Tip Speed: 18,684 fpm / 5,694.88 mpm
Blade Drive: V-belt drive to spindles with electric clutch. Spring tension idler pulleys for
extended belt life
Spindles: 7 Gauge
Drive System: V-belt drive from engine crankshaft
Discharge Chute: High density, rubberised
Open Deck: Grass clears deck and discharge chute more easily due to the design (No
restricting bar on the discharge side)
Steering: Twin-lever steering provides independent control of each drive wheel. Speed, forward,
reverse, brake, and turns are all controlled with hand-operated controls
Blade(s) and Type: (3) Heavy-duty blades
Engine and Fuel Specs
Engine: Kawasaki FR691V
Type: Air cooled, 90-degree V-twin, normally aspirated petrol engine
Horsepower: 23.0 hp (17.2 kW) @ 3600 rpm (Please Note: Horsepower rating as tested to SAE
J1995 Standards)
Power Output: 12-volt (see engine manufacturers specifications)
Cooling: Air cooled. Flywheel fan
Fuel: Unleaded fuel – maximum of 10% ethanol in fuel (see engine manufacturers
specifications)
Fuel Filter: Replaceable, automotive-type
Oil Filter: Spin-on engine oil filter / Total oil capacity 2.1 litres with filter
Air Filter: Cartridge air filter
Fuel Capacity: 18.9 Litres
Governor: Mechanical
Safety Features
Safety Features: Specifications subject to change without notice
Hydrostatic Drive System Specs
Hydrostatic Drive System: Parker HTE 10cc wheel motors
Cutting Dimensions
Cutting Widths: 54” (1372 mm) cut side discharge
Cutting Height(s): Change on the go deck height dial with shock-assisted deck foot lift. 1” to 4.25” (25.4 mm to 107.95 mm) with 15 adjustable cut heights in between plus travel lock
