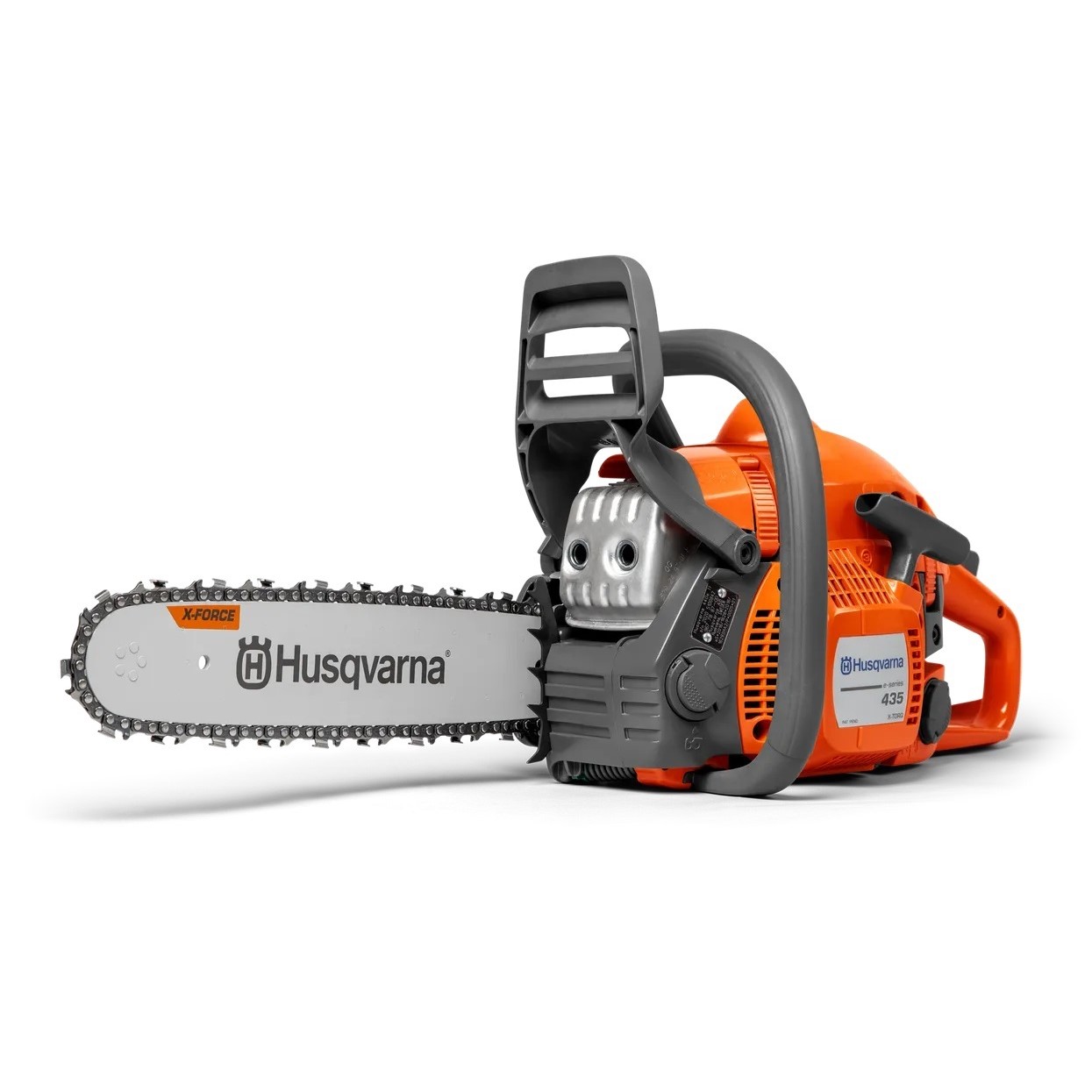

Key Features
- Flip-Up Fuel Cap
- Quick-Release Air Filter
- Felling Marks
- Smart Start® Technology
- Air Injection
- Powerful and Efficient X-TORQ® Engine
- Three-piece crankshaft
- Two mass principle
- Fuel Indicator
- Snap-Lock Cylinder Cover
- Inertia chain brake
- Easy to start
- Quick Start with Air Purge
Specifications
Engine
Chain speed at max power: 17.3 m/s
Cylinder displacement: 40.9 cm3
Output shaft power 1: 1.6 kW
Equipment
Recommended bar length, min: 33 cm
Pitch: .325” mini
Recommended bar length, max: 45 cm
Chain type: H30
Bar length: 38 cm
Bar length (inch): 15 in
Dimensions
Weight (excl. cutting equipment): 4.4 kg
Sound and noise
Sound power level, guaranteed (LWA): 114 dB(A)
Sound pressure level at operators ear: 102 dB(A)
Vibration
Equivalent vibration level (ahv, eq) rear handle: 3.8 m/s2
Equivalent vibration level (ahv, eq) front handle: 3.1 m/s2
Emission
Exhaust emissions (CO2 EU V): 813 g/kWh
1 Output shaft power: Net power rating as per ISO 7293, at specified RPM
2 Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
