Key Features

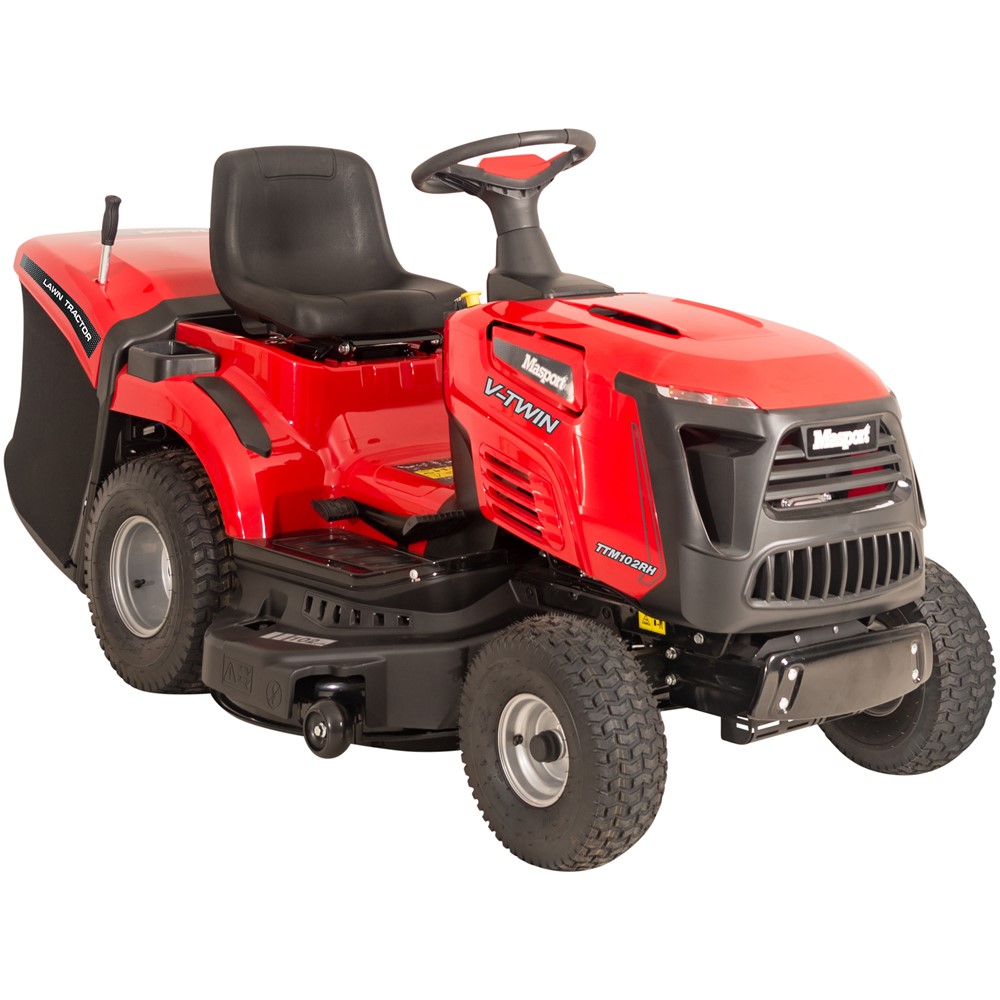

- Masport MVT500 Series 586cc V-Twin 19HP engine is powerful, balanced with low vibration and noise
- Equipped with 40″ (102m) steel rear discharging cutting deck for fast and efficient mowing
- Alloy spindle housing keeps the bearings cooler, extending working life
- Tuff Torq® K46 transmission provides a smooth and easy to use foot operated variable speed drive system
- Mulch option helps reduce clean up and returns the finely cut grass as nutrients to your lawn
- Modern LED lights allow for mowing in lower light conditions, improving visibility
- Electromagnetic clutch allows you to engage and disengage the cutting blades simply with the pull of a switch
- Pivoting steel front axle provides driver comfort and improved contact with the ground
- The Reverse Mode Operation (RMO) feature allows you to mow while travelling in reverse
- A steel front bumper provides protection for the front of the mower
- A large 7.5L translucent fuel tank provides both fuel level visibility and longer runtime between refueling
- Front 15 x 6.00-6 and Rear 18 x 8.50-8 wheels
- Cutting range – 7 positions 30mm-90mm cut height
- Adjustable high back seat
- Ergonomically positioned operator controls
- Deck wash allows for easy cleaning of loose grass from the cutting deck
- Anti-scalp wheels
- Park brake
- Tow hitch
- Machine Warranty – 2 years, plus 1 year upon registration
Specifications
Engine Make: Masport
Engine Model: MVT500
Fuel Tank Capacity: 7.5L
Engine Capacity: 19HP
Number of Cylinders: 2 Cylinders
Engine Oil Capacity: 1.7L
Battery Voltage (volts): 12V, 18Ah
Electric Start – Battery Type: 12V, 18Ah
Blade Type: 2 blades
Cutting Width: 1020mm (40″) cutting deck
Cutting Height Range: 30 – 90mm, 7 position
Blade Engagement: Electromagnetic
Transmission: Rear – Hydrostatic Tuff Torq K46DR
Drive System: V-Belt
Forward Speed: 0-8.8km/h
Reverse Speed: 0-4.5km/h
Chassis Material: Steel
Deck Type: Rear Discharge
Steering System: Rack & pinion
Turning Radius: 45cm
Seat Type: Adjustable with high back
Deck Lift: Manual
Deck Fabrication: Steel
Catcher Type: Fabric
Catcher Volume: 245L
Wheel Base Size: 1170mm
Front Tyres Size: 15″ x 6.0 – 6
Rear Tyres Size: 18″ x 8.5 – 8
Accessories: Mulch Plug Included
Weight: 196.5kg
Product Dimensions (W x H x L): 990mm x 1110mm x 2305mm
